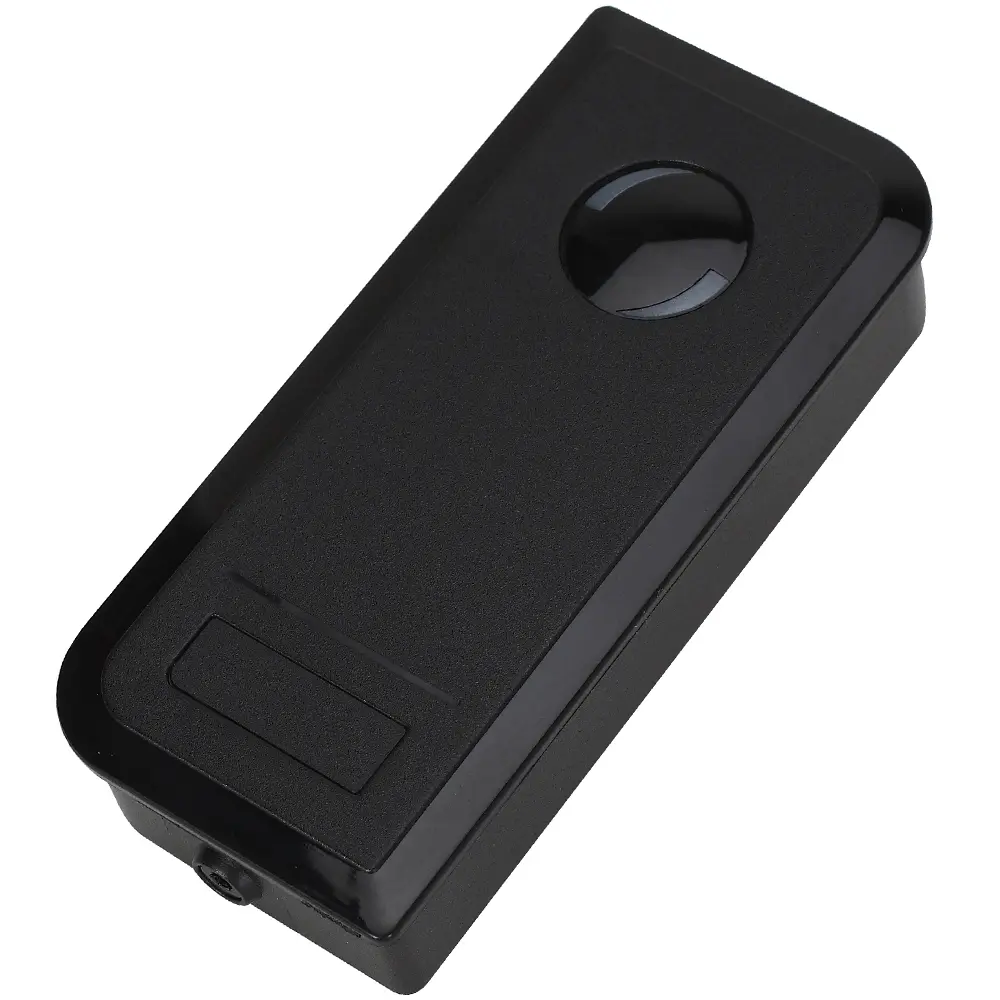

An ideal choice for high security applications. Attractive weatherproof design with a slim profile and modern appearance.
This dual technology 125KHz and 13.56MHz RFID proximity reader with Wiegand interface is compatible with EM/HID/MIFARE cards and tags.
Features
- Waterproof: Conforms to IP66
- Wiegand Format:
- EM: 26 bits
- MIFARE: 34/58 bits (32/56 bits optional)
- HID: 26 bits
- Card Types: 125KHz HID & EM cards, 13.56MHz NXP Mifare, Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare Class 4K, NFC and CPU cards
- Reading range: 3 ~ 8cm
- External LED Control / External Buzzer Control
- Working temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Applications
- Access Control
- Time & Attendance
- ID Authentication
Ordering information...
CPS1-RX - 125kHz & 13.56MHz RFID Reader
